Shape Code 77

Shape Code 77 is reinforcement formed into a helical, or spiral, configuration rather than a flat bend. South Steel supplies cut and bent reinforcement online to the details specified for your project. Use your engineer’s drawings or bar bending schedule to confirm the bar diameter, dimensions, spiral details and quantity before preparing your order.

Order Shape Code 77 Rebar Online

To order Shape Code 77 rebar, select the specified reinforcement diameter and complete the product options using the supplied measurements. Check the configuration against the diagram and your schedule, then choose the required quantity. Add it to your basket and proceed through checkout when the requirement is clear.

For spiral reinforcement, the diameter of the steel bar is different from the diameter of the formed spiral. Keep those details separate when entering your order. Check any specified turn and pitch information against your documents too. If the form doesn’t clearly capture your full requirement, send the schedule and drawing for a quote rather than omitting information.

Shape Code 77 Explained

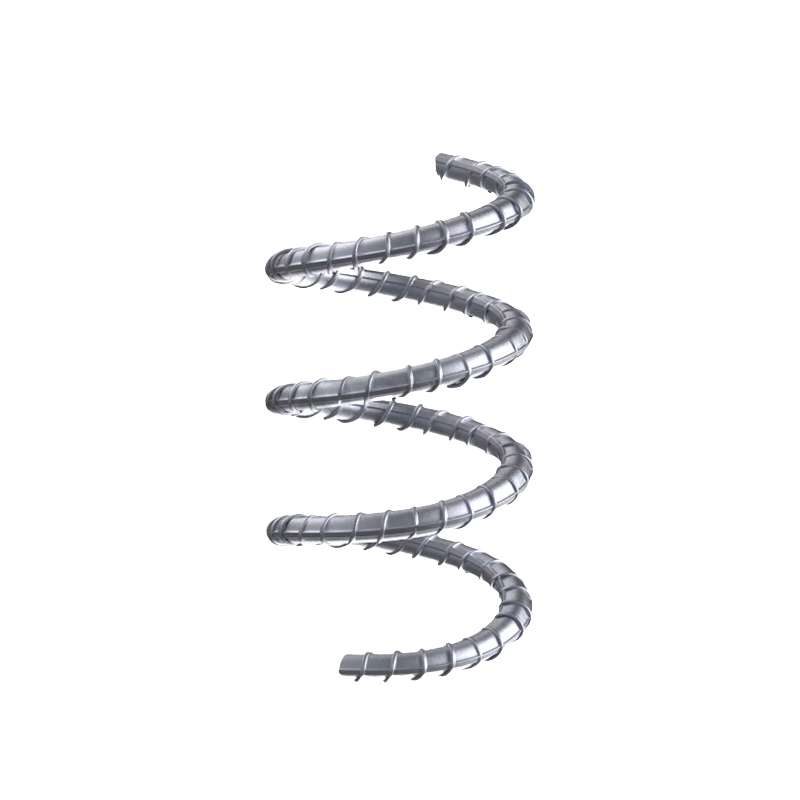

Shape Code 77 identifies the spiral arrangement of the reinforcement. The diagram provides a visual reference for the formed bar and the measurements describing it. This distinguishes the configuration from a single circular bar or a bent link.

A shape code alone doesn’t define the spiral size, number of turns or bar diameter needed for your project. Those details must follow your structural engineer’s drawings, calculations or specification. Don’t choose spacing or dimensions from the image proportions, and don’t treat quantity as a substitute for the specified turn details. Ask your engineer to clarify missing information before purchasing.

Reinforcement Steel From South Steel

For Shape Code 77 orders, our reinforcement steel range includes straight rebar, reinforcing mesh and other cut and bent configurations for domestic customers and trade buyers. We also supply structural steel and related accessories for projects requiring several steel products.

For a schedule-based quotation, upload your reinforcement schedule with drawings and specification notes. We can review the shapes, dimensions, diameters and quantities required. Contact South Steel for ordering support or a product enquiry that needs explanation beyond the available fields.
