Shape Code 47

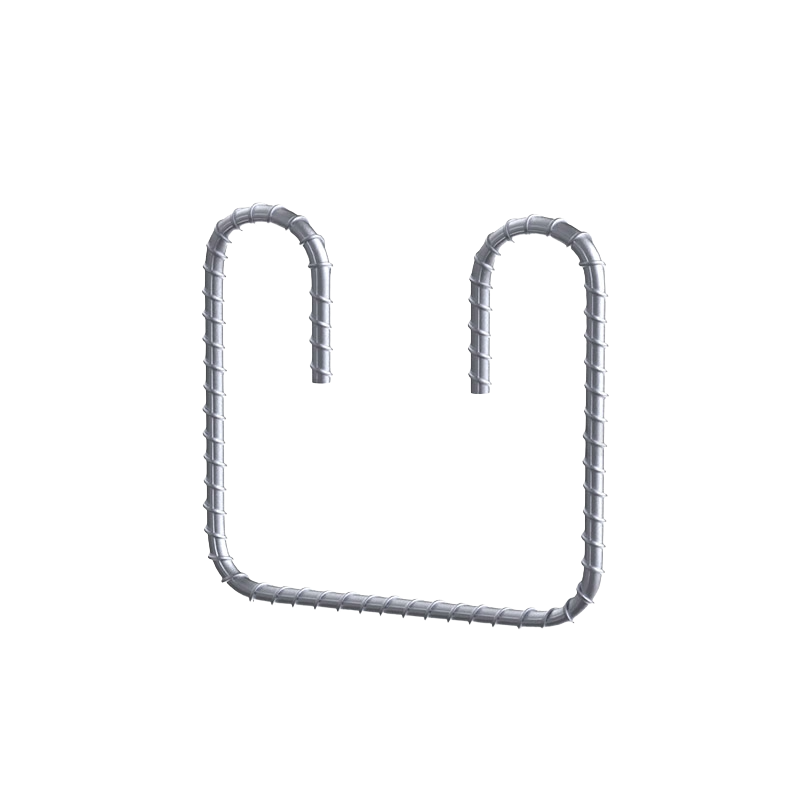

Shape Code 47 is bent reinforcement with a U-shaped main section and hooked returns at the ends. Order through South Steel’s cut and bent reinforcement range using the dimensions specified for your project. We supply domestic customers, self-builders, contractors and trade buyers working from engineers’ drawings, calculations or a confirmed reinforcement schedule.

Order Shape Code 47 Rebar Online

To order Shape Code 47 rebar, choose the specified diameter and enter each measurement requested in the product form. Match the references to the diagram, select the quantity and check the completed configuration against your schedule. Add the bars to your basket and continue through checkout to purchase online.

Include the hooked end details when checking your measurements, not just the dimensions of the main U-shaped section. These features are part of the configuration being ordered. Keep different sizes and quantities separate when working through several schedule entries. For multiple reinforcement shapes, you can send your schedule to our team for a quote covering the requirement.

Shape Code 47 Explained

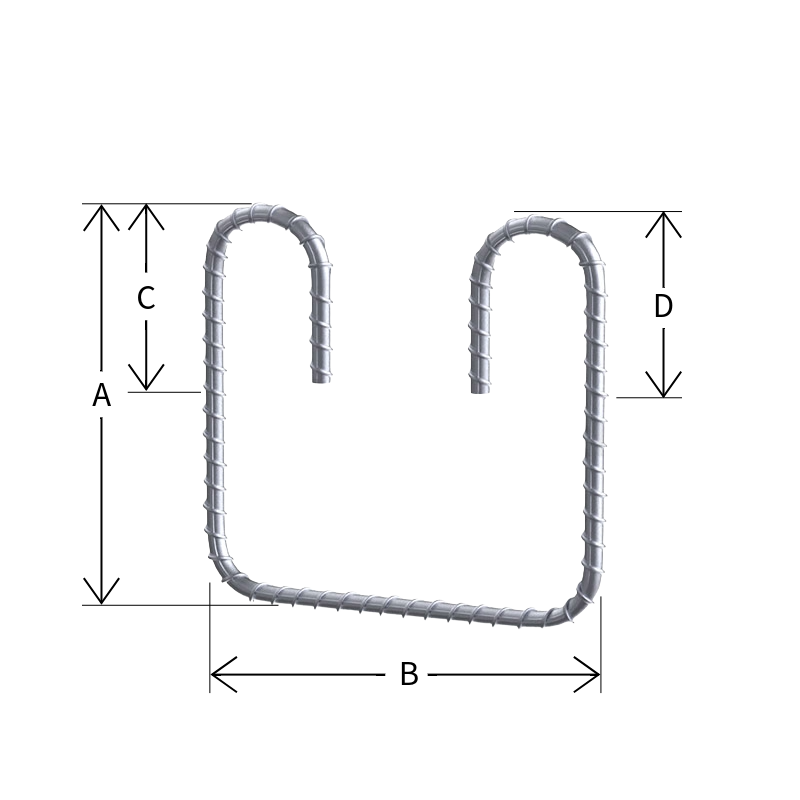

Shape Code 47 describes the arrangement of the main section, legs and returning ends. The hooks distinguish this configuration from a plain U bar. The diagram shows the dimensional labels needed to connect the physical bar with your project information.

Use those labels to transfer the specified measurements, not to decide what size the bar should be. Your structural engineer must confirm the dimensions, diameter and structural requirements. Don’t alter a return length or select a similar shape because it appears to fit. Where the supplied detail is incomplete, ask for clarification before ordering.

Reinforcement Steel From South Steel

You can source Shape Code 47 rebar alongside our wider reinforcement steel, including straight bars, reinforcing mesh and other bent configurations. We also supply structural steel and accessories, helping you organise different steel products for the same building or construction project.

For a schedule-based quotation, upload your bar bending schedule with relevant drawings and specification notes. We can review the shapes, dimensions, diameters and quantities together. Contact South Steel for help with product options or the ordering process.
