Shape Code 14

Shape Code 14 is cut and bent reinforcement with an angled return, supplied to the dimensions confirmed for your project. South Steel offers cut and bent reinforcement online for homeowners, self-builders and trade customers. Use your engineer’s drawings, calculations or bar bending schedule to select the required diameter, measurements and quantity before ordering.

Order Shape Code 14 Rebar Online

Start with the matching bar reference in your project information. Choose the specified diameter, enter each requested dimension and set the quantity required. Review the configuration against the diagram, then add the bars to your basket and check out.

Keep all the measurements together when preparing your order. An overall length alone doesn’t describe the position of the return or the complete bent shape. When the same shape appears in several sizes, check each schedule entry separately. For a requirement that needs supporting drawings, send the details to our team before purchasing rather than simplifying the specification to fit the form.

Shape Code 14 Explained

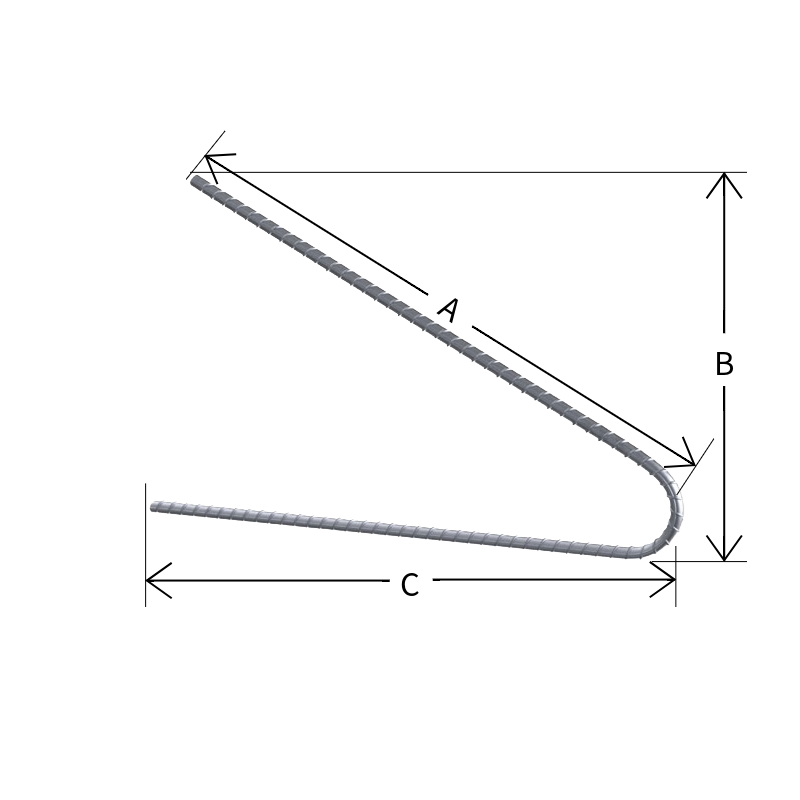

Shape Code 14 identifies a bar that bends back towards itself, with one leg inclined relative to the other. The diagram gives the measurement references needed to distinguish that arrangement from a straight bar or a different hook configuration.

Use the shape image alongside your supplied dimensions, matching each reference to its corresponding part of the bar. The illustration is there to identify the configuration, not to provide measurements for your project. Don’t estimate the angle or alter a leg length to make a detail appear to fit. Ask your engineer to confirm missing or conflicting information before placing the order.

Reinforcement Steel From South Steel

You can source this product alongside our wider reinforcement steel, including straight rebar, other bent shapes and reinforcing mesh. We also supply structural steel and accessories, helping customers bring different steel requirements into one purchasing enquiry.

For several bar shapes or quantities, upload your bar bending schedule with the drawings. We can review the information and prepare a quote against your requirements. Contact South Steel for practical ordering support or questions about the options.
