Shape Code 22

Shape Code 22 is a bent reinforcement configuration combining a right-angle end with a returning hook at the other end. South Steel supplies cut and bent reinforcement to customer-specified dimensions for domestic building projects and trade orders. Use your engineer’s drawings or bar bending schedule to confirm the bar details before selecting your diameter, dimensions and quantity online.

Order Shape Code 22 Rebar Online

To order Shape Code 22 rebar, match the shape reference in your schedule to this product, then choose the specified diameter. Enter the measurements requested beside the diagram and select how many bars you need. Check each detail before adding the product to your basket and proceeding to checkout.

Pay attention to the different details at each end of the bar when transferring your measurements. Don’t use one end dimension for both unless your documentation specifies it. For a mixed reinforcement order, keep each bar reference and quantity clear. A schedule-based enquiry is also available where several shapes or drawing details need to be reviewed together.

Shape Code 22 Explained

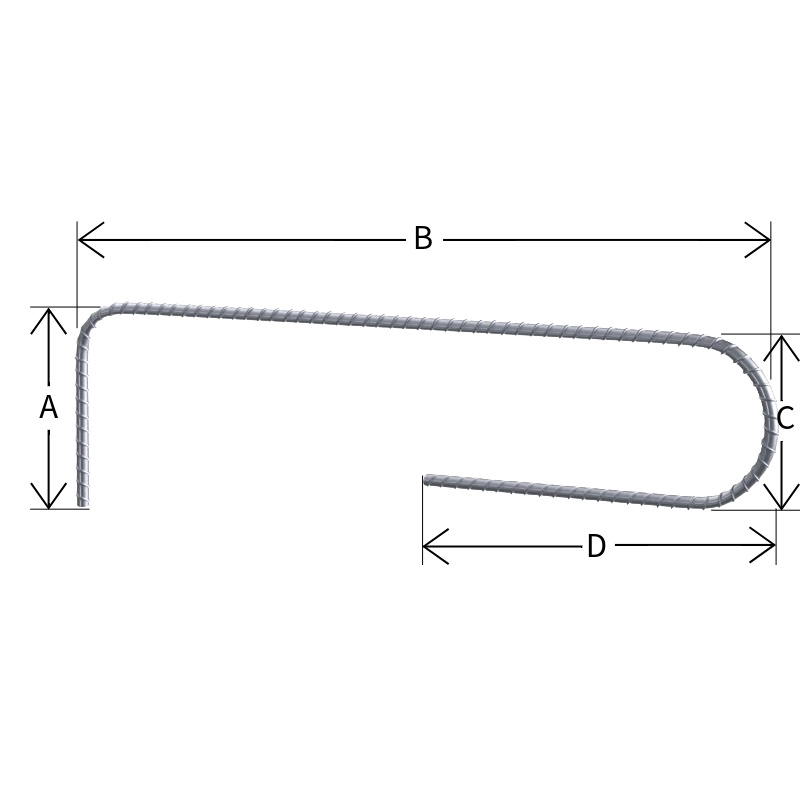

Shape Code 22 describes the configuration rather than a fixed bar size. Its combination of bends and return distinguishes it from a plain U bar or a single hook. The diagram provides a visual reference for the bar listed in your reinforcement documents.

Use the dimension labels to connect the form with the drawing or schedule entry. Don’t infer measurements from the proportions of the image. Your engineer must specify the reinforcement dimensions, diameter and structural requirements. Where a detail is missing, obtain confirmation before purchasing rather than replacing it with a similar-looking bar or an estimated measurement.

Reinforcement Steel From South Steel

For Shape Code 22 orders, South Steel supplies reinforcement steel including straight bars, reinforcing mesh and other bent shapes. We also offer structural steel and related accessories, helping homeowners, self-builders and contractors organise wider steel purchases through one supplier.

For an order covering several reinforcement references, upload your bar bending schedule with the associated drawings and notes. We can review the specified items and provide a quote. Contact South Steel for help with ordering questions or explaining a requirement that is not covered by the product options.
